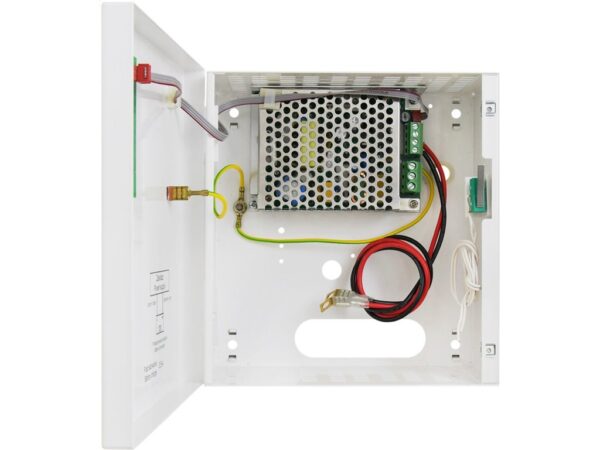

Pulsar Voedingskast 12Vdc 2,5A – 7Ah. EPS/APS outputs. Grade 2
| Power supply | 200÷240VAC |
| Power supply output | 2A/13.8VDC |
| Compliant with standards | Construction compliant with EN50131, GRADE 1÷2 Access control norm EN60839-11:2013, Grade 1÷2 |
| Battery charging current | 0.5A/1A |
| Battery | 1 x 7Ah |
| Efficiency | 86% |
| Dimensions | 200 x 230 x 82 [+/-2 mm] distance from floor: 8 mm |
| Protections | SCP, OLP, OVP, UVP, tamper – opening of enclosure |
| Technical outputs relay type | EPS – AC power failure APS – battery failure |
| Closing | bolted (lock assembly possible) |
| Installation | surface-mounted |
| Indication | LED optical indication |
| Material | sheet metal DC01, 0.7mm, RAL9003 (white), metallic |
| IP protection class | IP 20 |
